Description

Specification

• Transistor Type	PNP
  Maximum DC Collector Current	25 A
  Maximum Collector Emitter Voltage	100 V
  Package Type	TO-247
  Mounting Type	Through Hole
  Maximum Power Dissipation	125 W
  Minimum DC Current Gain	10
  Transistor Configuration	Single
  Maximum Collector Base Voltage	100 V
  Maximum Emitter Base Voltage	5 V
  Maximum Operating Frequency	3 MHz
  Pin Count	3
  Number of Elements per Chip	1
  Width	5.15mm
  Minimum Operating Temperature	-65 °C
  Maximum Collector Emitter Saturation Voltage	4 V
  Length	15.75mm
  Dimensions	20.15 x 15.75 x 5.15mm
  Maximum Operating Temperature	+150 °C
  Height	20.15mm

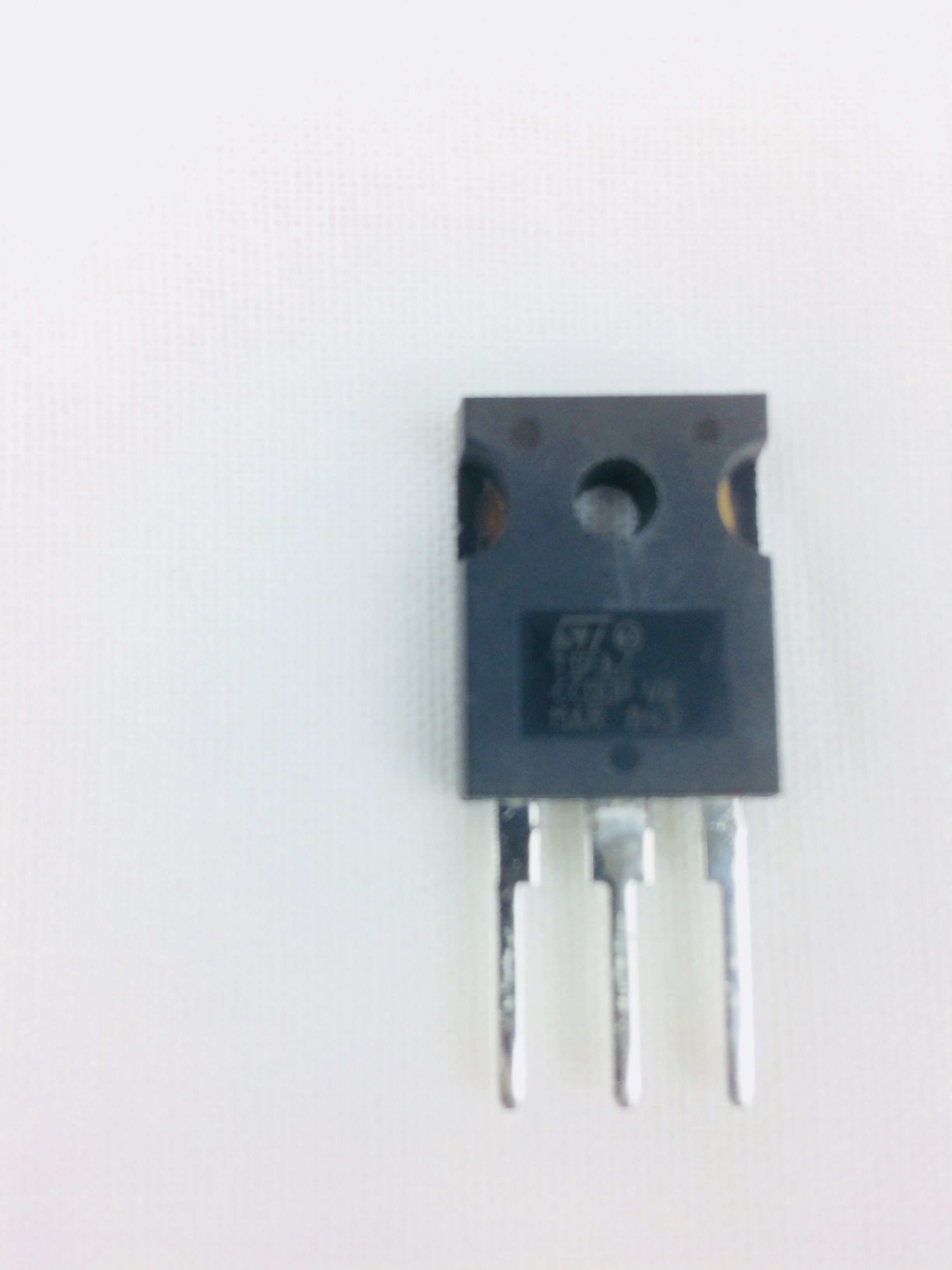

•  Qes part TRTIP36C
